WHY HORIZON

Built Different, Built Better.

Precision Engineered

State-of-the-art No-Twist 6-Stand High-Speed Block technology delivers dimensional accuracy and consistency in every bar and rod.

Internationally Certified

Every product is backed by ISO-certified quality, rigorous in-house testing, and compliance with ASTM and BS standards.

Made for Pakistan

Reducing import reliance and strengthening domestic supply — steel that powers the nation's infrastructure and industry.

Diameter / Bar Size (mm)	Standard Weight	Expected Length per MT
8 mm	0.395	0.12	2,532	8,306
10 mm	0.617	0.188	1,621	5,319
12 mm	0.888	0.271	1,126	3,690
16 mm	1.578	0.481	634	2,079
20 mm	2.466	0.752	406	1,330
25 mm	3.853	1.174	260	852
28 mm	4.834	1.473	207	679
32 mm	6.313	1.924	158	520

Diameter / Bar Size (mm)

Standard Weight

Expected Length per MT

Kg / Meter

Kg / Foot

Meters

Feet

8 mm

0.395

0.12

2,532

8,306

10 mm

0.617

0.188

1,621

5,319

12 mm

0.888

0.271

1,126

3,690

16 mm

1.578

0.481

634

2,079

20 mm

2.466

0.752

406

1,330

25 mm

3.853

1.174

260

852

28 mm

4.834

1.473

207

679

32 mm

6.313

1.924

158

520

Bar Designation Number	Diameter	Standard Weight	Expected Length per MT
2	5/16	8	0.395	0.120	2,532	8,306
3	3/8	9.5	0.56	0.171	1,786	5,848
4	1/2	12.7	0.994	0.303	1,006	3,300
5	5/8	15.9	1.552	0.473	644	2,114
6	3/4	19.1	2.235	0.681	447	1,468
7	7/8	22.2	3.042	0.927	329	1,079
8	1	25.4	3.973	1.211	252	826
9	1-1/8	28.7	5.060	1.542	198	648
10	1-1/4	32.3	6.404	1.952	156	512

ROLLED AT
SPEEDS UP TO 29 M/S.

Precision-engineered low carbon, medium carbon, welding electrode and cold heading quality (CHQ) wire rods from 5.5 mm to 22 mm, produced on European No-Twist 6-Stand high-speed block technology for consistent strength, superior surface quality, and dependable drawing performance.

Designed to minimize surface defects and impurities, our wire rods support high-efficiency production in fasteners, cables, fencing, springs, and industrial fabrication.

Applications: Fasteners, bolts, springs, barbed wire, fencing, cable reinforcement, electrical, galvanized wire, and automotive manufacturing.

REQUEST WIRE ROD SPECIFICATIONS →

Quality You Can Trust

Our certified management systems are backed by in-house verification: spectrometer and servo tensile testing confirm every batch before it leaves the mill.

SPECTROMETRY

Chemical Purity

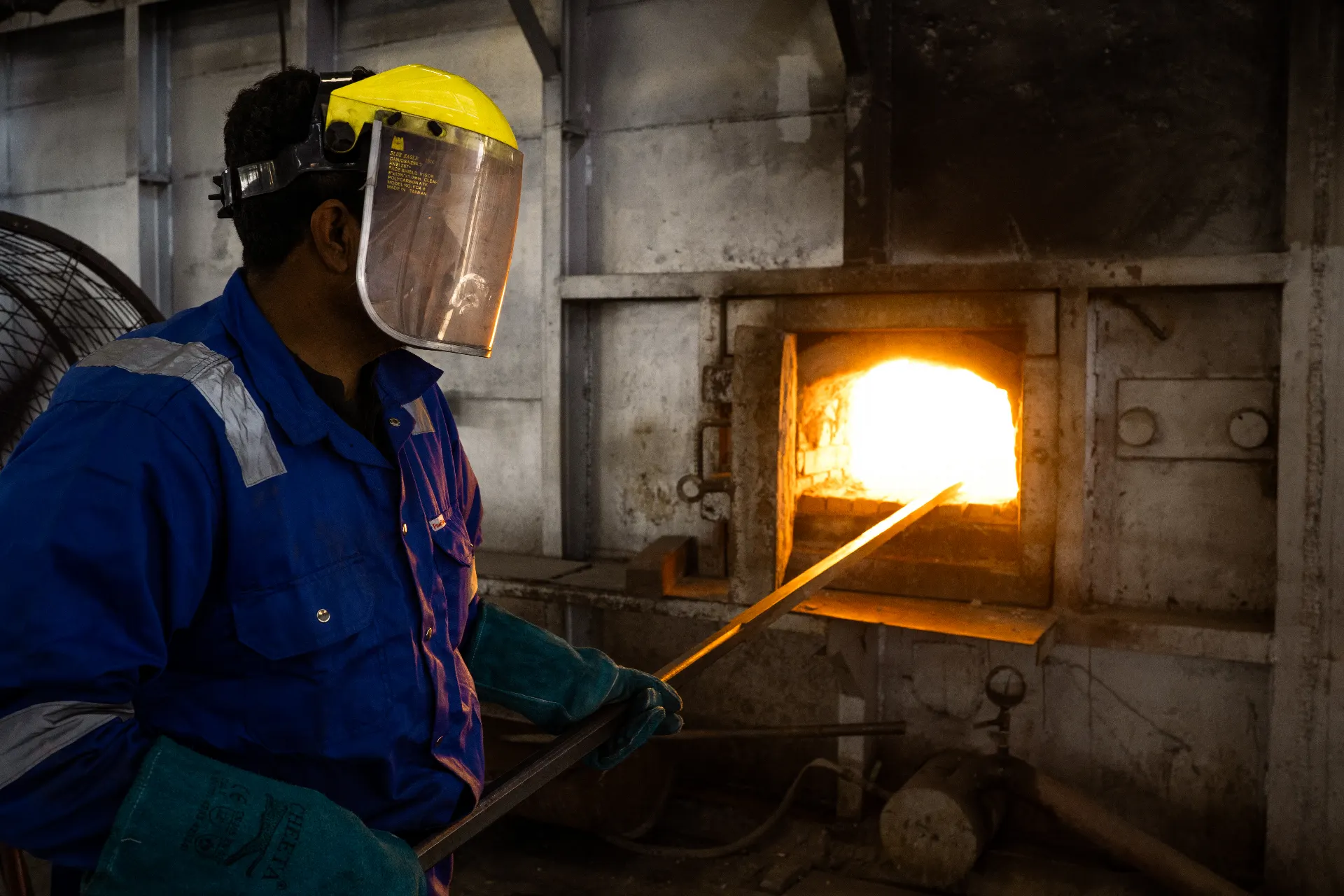

Optical Emission Spectrometer checks Carbon, Manganese, Sulfur & Phosphorus levels for heat certification.

SERVO TENSILE

Mechanical Strength

Computerized servo testing verifies minimum yield strength — 420 MPa (ASTM A615 / A706 Grade 60), 550 MPa (ASTM A615 Grade 80), 500 MPa (BS 4449 G500W) — plus tensile strength & elongation.

01 /

GREEN STEEL
MANUFACTURING

Our on-site solar power plant covers approximately 30% of the company’s electricity needs, significantly reducing our carbon footprint.

Water recycling, emission control, and waste-reduction initiatives further establish Horizon Steel as a leader in green steel manufacturing.

02 /

HEALTH, SAFETY &
ENVIRONMENT

Horizon Steel fosters a culture of safety and continuous improvement.

Employees receive regular training in operational efficiency, environmental awareness, and advanced safety practices, cultivating a motivated, knowledgeable, and safety-driven workforce.

03 /

BUILDING
COMMUNITIES

Through our social partnerships, we actively support healthcare and education across Pakistan.

The Iskander Sultan Khwaja Campus of The Citizens Foundation (TCF) in Islamabad provides quality education to 164 students each year — reflecting our long-term commitment to inclusive and sustainable social progress.

04 /

OPERATIONAL
COMMITMENTS

We are committed to operational excellence through responsible sourcing, energy efficiency, and strict compliance with international standards.

Our integrated management systems ensure sustainable growth that benefits our stakeholders, our communities, and the environment.

LET'S BUILD TOGETHER.

From infrastructure projects and industrial supply to custom steel requirements, our team is ready to support your sourcing, technical, and procurement needs across rebar and wire rod products.

HEAD OFFICE

D-93, Block-IV, Clifton, Karachi, Sindh, Pakistan.

FACTORY

Plot # 44, 45, 49, 50, 51, 52, Bin Qasim Industrial Park, Bin Qasim Town, Karachi, Sindh, Pakistan.

GET IN TOUCH

Landline: (+92 21) 35295884–87
Mobile: +92 317 111 7118
Sales & enquiries: sales@horizonpakistan.com
General: info@horizonpakistan.com

Instagram @horizonsteelpk · LinkedIn @hspl

Bar Designation Number	Diameter		Standard Weight		Expected Length per MT
Bar Designation Number	Inches	mm	Kg / Meter	Kg / Foot	Meters	Feet
2	5/16	8	0.395	0.120	2,532	8,306
3	3/8	9.5	0.56	0.171	1,786	5,848
4	1/2	12.7	0.994	0.303	1,006	3,300
5	5/8	15.9	1.552	0.473	644	2,114
6	3/4	19.1	2.235	0.681	447	1,468
7	7/8	22.2	3.042	0.927	329	1,079
8	1	25.4	3.973	1.211	252	826
9	1-1/8	28.7	5.060	1.542	198	648
10	1-1/4	32.3	6.404	1.952	156	512

STRENGTH THAT BUILDS

Built Different, Built Better.

Precision Engineered

Internationally Certified

Made for Pakistan

Two Product Lines. One Uncompromising Standard.

Reinforcing Steel Bars

Wire Rods

Leadership &Future Outlook

Visionary Leadership

Future Growth

Ready to Partner With Us?

From 8 mm to 32 mm,Engineered for Every Grade.

UltraGold

UltraForce

UltraXcel

UltraTuff

PRECISION METRIC GUIDE

ROLLED AT SPEEDS UP TO 29 M/S.

PRECISION AT PRODUCTION SPEED.

Internationally Certified.Uncompromising Quality.

From Billet toFinished Steel

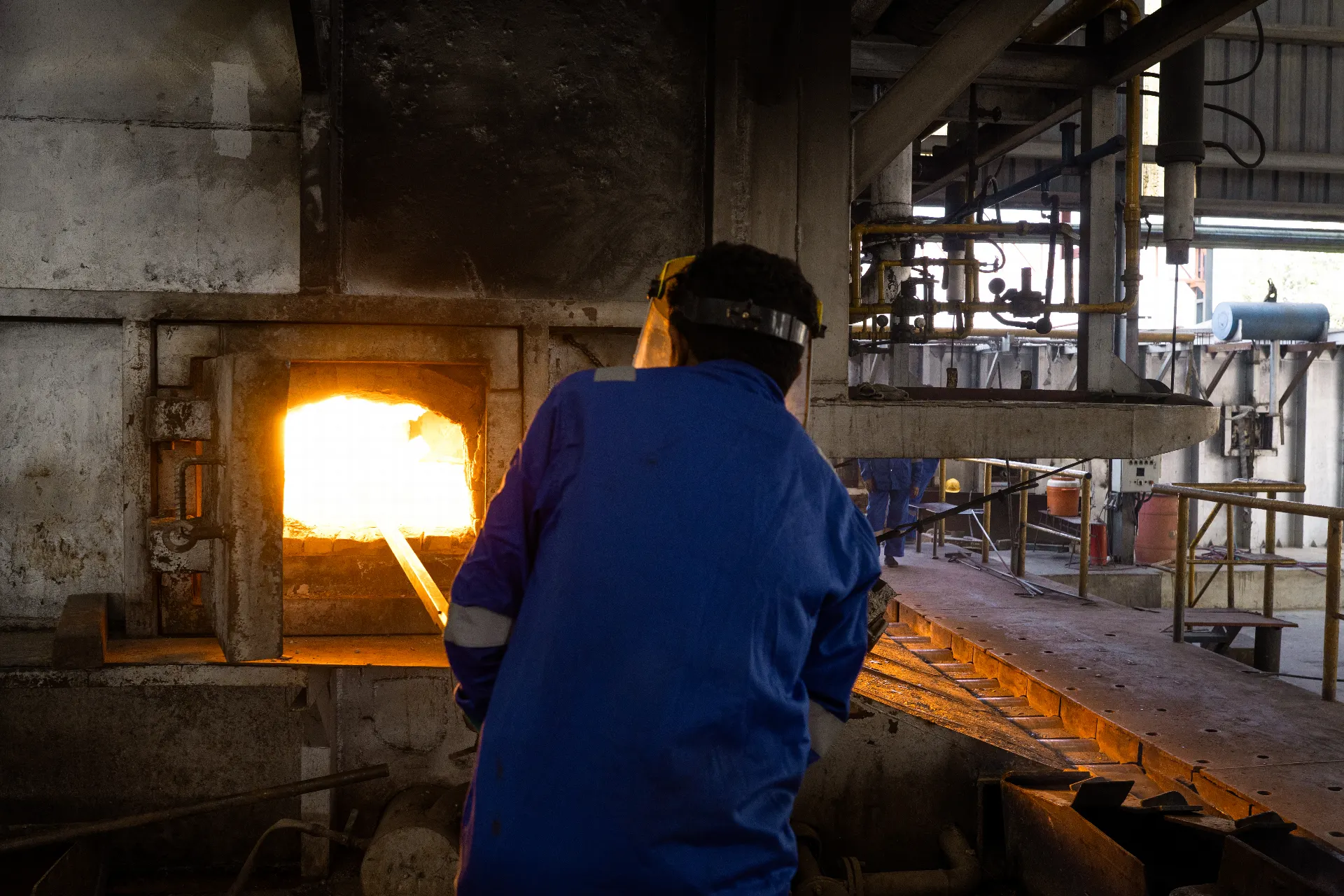

Reheating

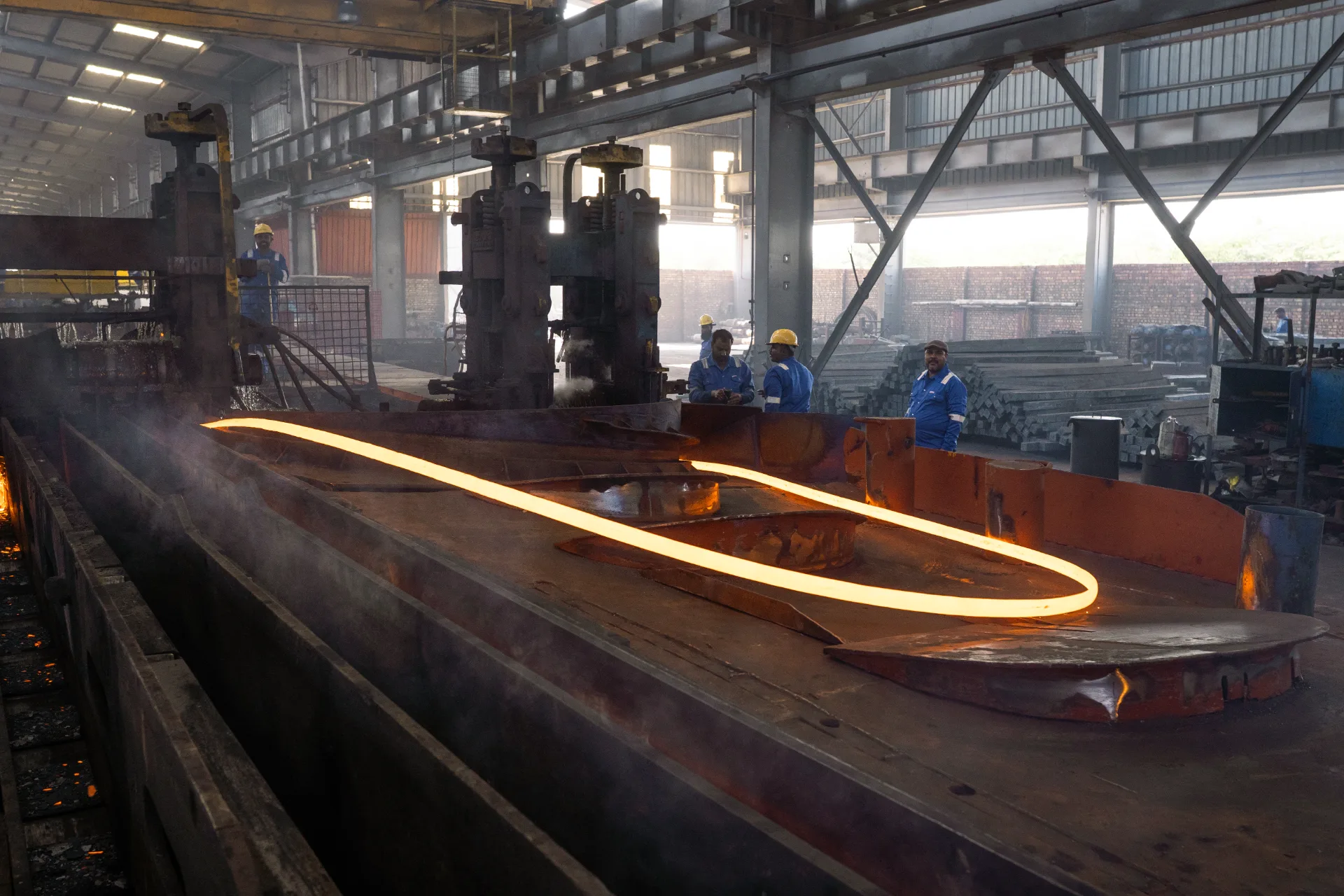

Rolling

Cooling & Finishing

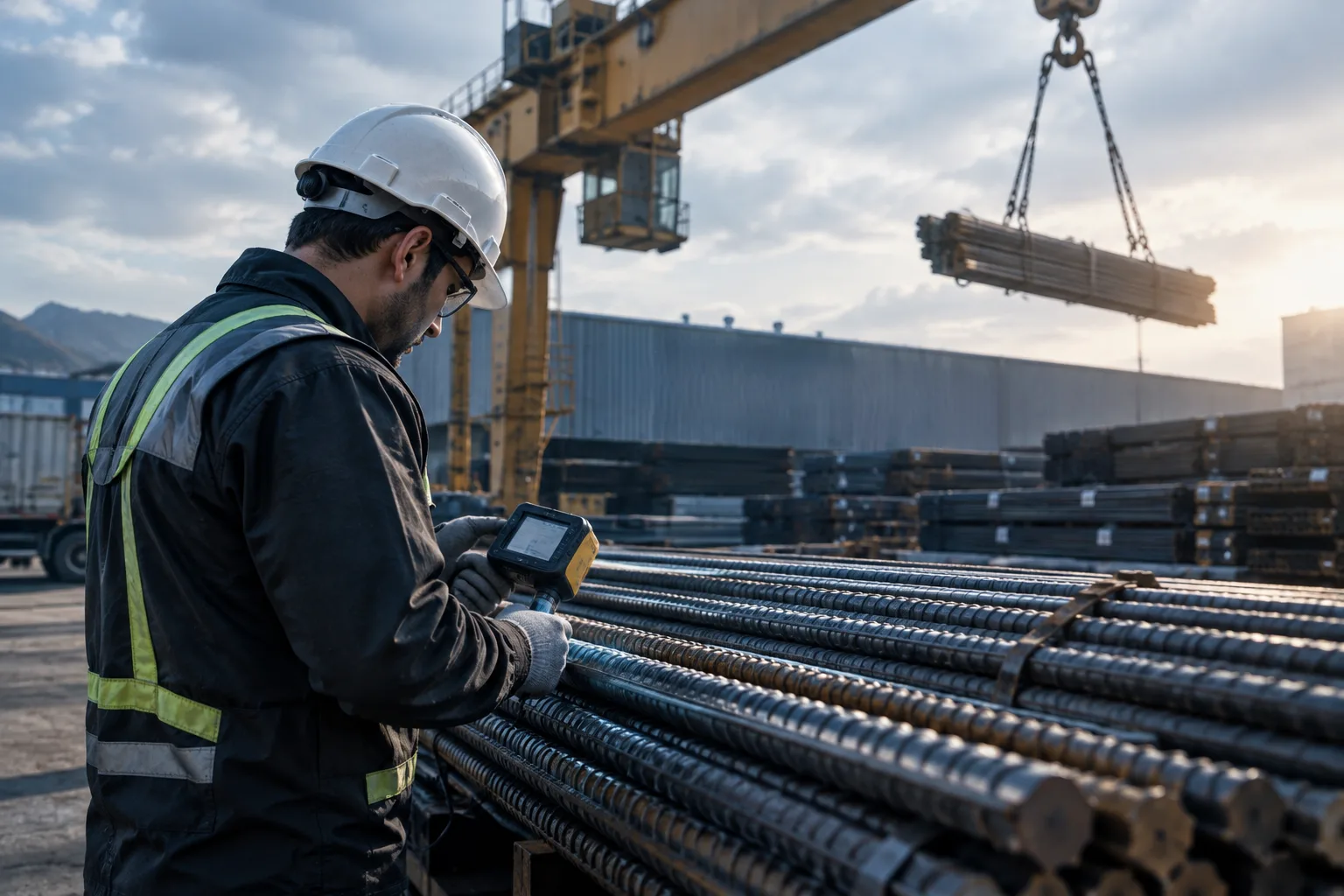

Inspection

Continuous No-Twist Block

Up to 29 m/s

20 T/HR Furnace

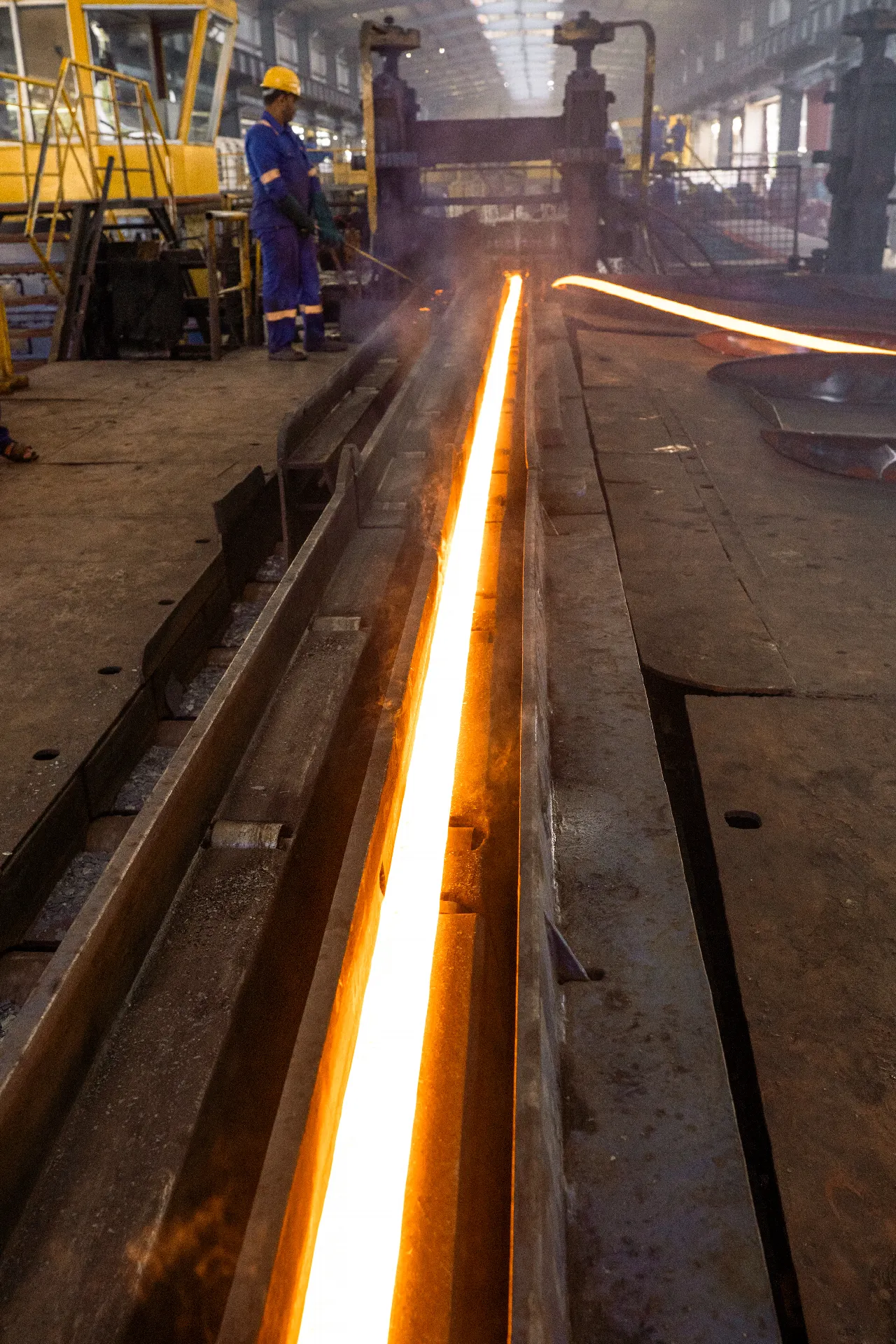

54m Cooling Bed
